Fruit and vegetable processing machinery
Fruit and vegetable processing machinery

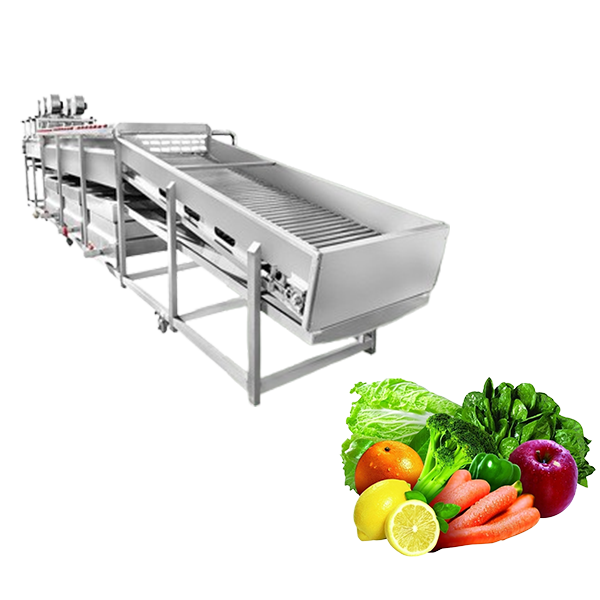

Air Bubble Water Spraying vegetable and fruit cleaning machine

Air Bubble Water Spraying vegetable and fruit cleaning machine adopts innovative water-oxygen mixing technology to bring breakthrough solutions to the field of food cleaning. This device is suitable for diversified food processing needs, covering leafy vegetables, root vegetables, fruits, aquatic products and other diversified categories, and realizes the whole process of intelligent processing of decontamination, purification and preservation through a unique three-dimensional cleaning system.

Product Description



The core components of the Air Bubble Water Spraying vegetable and fruit cleaning machine are made of food-grade 304 stainless steel one-piece molding process and have passed the ISO22000 food safety system certification. The patented wavy conveyor belt is equipped with special anti-corrosion treatment, with a 0.3mm precision gap and a 15° inclination design to ensure lossless transmission of food and efficient drainage. The intelligent variable frequency drive system supports 5-25 minutes of step-less adjustment, and cooperates with pressure sensors to achieve precise process control.

Innovatively integrate three-dimensional high-pressure spraying and micro-nano bubble generation technology to form a double cleaning matrix: the top 360° rotating nozzle achieves surface flushing with 2.5MPa water pressure, and the bottom array air pump generates 50μm ultra-fine bubbles, which can effectively decompose 98.7% of surface residues. According to SGS testing and certification, the removal rate of organophosphorus pesticides can reach 92.6%, and the killing rate of E. coli is 99.98%.

Product Parameters



Model Voltage Power（KW） Product size Weight
HYJSG-3 380 3.55 3000*1200*1450 300
HYJSG-4 380 3.7 4000*1200*1450 350
HYJSG-5 380 3.7 5000*1200*1450 400
HYJSG-6 380 4.5 6000*1350*1450 450
HYJSG-7 380 4.5 7000*1350*1450 500
HYJSG-8 380 6 8000*1200*1450 550
HYJSG-9 380 6.75 9000*1200*1450 600

Application



Air Bubble Water Spraying vegetable and fruit cleaning machine has been successfully used in modern food engineering fields such as central kitchens, fresh food distribution centers and pre-prepared food processing. The single machine processing capacity can reach 1.2 tons/hour, and the energy consumption is 40% lower than that of traditional equipment. It can be equipped with ozone generation module and PH value adjustment system to meet the special processing needs of different ingredients and establish a reliable barrier for food safety production.

Please provide the name of the machine you need, detailed parameters, packaging method, destination port and other information to facilitate us to obtain the best quotation.

MODEL

HYJGS-1
